SAN switch introduction
Basically there are two kinds of SAN switches in the market.
Since Brocade was bought by Broadcom, sometimes they are also referred as Broadcom Switches 博通交换机. In IBM, they are referred as b-type switches and c-type swtiches respectively. Today I am going to talk more about b-type switches. There are two types of brocade swtiches:- standard switches(交换机), also known as pizzabox
- director(导向器)
Introduction to Brocade switch data collection
In general there are two types of data collection for broadcade switches: supportshow and supportsave
- supportshow: connect to the switch via ssh and run command
supportshow
and save the output to a file. It is useful for diagnosing some well defined issues, like a specific port error, a specific sfp problem etc - supportsave is always recommended for diagnosing genral switch issues or you have a IO problem in the
SAN environment and you want the switch team to check from SAN wise.
This is supportsave
collection procedure
- prepar a FTP server
- run supportsave and specify the FTP server information so that the collected data will be offloaded to the FTP server
- package a number of files to a single one
Let's take a close look at the supportsave package. It is usually packged as a single file like tgz or .zip or RAR file. after you uncompress the file, you get a list of compressed files like the following:
#cd /tmp/switch #ls IBM_2498_B40-S0cp-201410101405.AGDUMP.txt.ss.gz IBM_2498_B40-S0cp-201410101405.AGWWNS.ss.gz . . . IBM_2498_B40-S0cp-201410101409.VFABRIC.txt.ss.gz IBM_2498_B40-S0cp-201410101409.archived_log.tgz.ss.gz
You need to use a tool supportDecode.pl to uncompress the gz files as well as decode a few bindary files.
Example of running this tool:
$ supportDecode.pl No argument found, using local directory... Begin Extracting files... Extract Complete! Begin Untaring files... Untaring the B40_41-S0cp-202103020921.BLSREGDUMP.tar var/blsemptyregdump.txt Untaring the B40_41-S0cp-202103020921.C1REGDUMP.tar var/c1emptyregdump.txt Untaring the B40_41-S0cp-202103020921.C2REGDUMP.tar /var/c2regdump.dmp.0.0.gz /var/c2hregdecode /var/c2hregcmp Untaring the B40_41-S0cp-202103020921.PBREGDUMP.tar var/pbemptyregdump.txt Untaring the B40_41-S0cp-202103020922.AVREGDUMP.tar var/avemptyregdump.txt Untaring the B40_41-S0cp-202103020922.C3REGDUMP.tar var/c3emptyregdump.txt Untaring the B40_41-S0cp-202103020923.DM_FTR_FFDC.tar /var/log/Dmesg_ffdc.tar Untaring the B40_41-S0cp-202103020923.MP_LOG.tar var/log/mp_trace var/log/mp_snap Untar Complete! Begin decoding files... Decode Complete! ......
After that, you will get a number of text files as follows:
$ ls B40_41_FID128-S0cp-202103020923.AMS_MAPS_LOG.txt B40_41-S0cp-202103020917.SSHOW_ISWITCH.txt B40_41-S0cp-202103020921.CEEDEBUG.txt B40_41-S0cp-202103020922.esmd.tar.txt B40_41_FID128-S0cp-202103020923.FLOW_VISION_LOG.txt B40_41-S0cp-202103020917.VPWWN_CFG.txt B40_41-S0cp-202103020921.CEETECHSUPPORT.txt B40_41-S0cp-202103020922.FCIP.txt B40_41-S0cp-202103020916.CTRACE_OLD.dmp B40_41-S0cp-202103020918.SSHOW_EX.txt B40_41-S0cp-202103020921.FCOESUPPORT.txt B40_41-S0cp-202103020922.MAPS.txt B40_41-S0cp-202103020916.CTRACE_OLD_MNT.dmp B40_41-S0cp-202103020918.SSHOW_FABRIC.txt B40_41-S0cp-202103020921.PBREGDUMP.tar B40_41-S0cp-202103020922.VFABRIC.txt B40_41-S0cp-202103020916.FTRACE_START.dmp B40_41-S0cp-202103020918.SSHOW_OS.txt B40_41-S0cp-202103020921.SSHOW_AG.txt B40_41-S0cp-202103020923.AN_DEBUG.txt B40_41-S0cp-202103020916.RAS.txt B40_41-S0cp-202103020918.SSHOW_PLOG.txt B40_41-S0cp-202103020921.SSHOW_CRYP.txt B40_41-S0cp-202103020923.DM_FTR_FFDC.tar B40_41-S0cp-202103020917.AGDUMP.txt B40_41-S0cp-202103020919.SSHOW_NET.txt B40_41-S0cp-202103020921.SSHOW_DCEHSL.txt B40_41-S0cp-202103020923.MP_LOG.tar B40_41-S0cp-202103020917.AGWWN_CFG.txt B40_41-S0cp-202103020919.SSHOW_SEC.txt B40_41-S0cp-202103020921.SSHOW_FCIP.txt B40_41-S0cp-202103020924.RAS_POST.txt B40_41-S0cp-202103020917.AGWWNS.txt B40_41-S0cp-202103020919.SSHOW_SERVICE.txt B40_41-S0cp-202103020921.SSHOW_FLOW.txt slot0cp/ B40_41-S0cp-202103020917.CTRACE_NEW.dmp B40_41-S0cp-202103020920.SSHOW_ASICDB.txt B40_41-S0cp-202103020921.SSHOW_PORT.txt SLOT0cp-B40_41-202103020916-SUPPORTSHOW_ALL.txt B40_41-S0cp-202103020917.DIAG.txt B40_41-S0cp-202103020920.SSHOW_FICON.txt B40_41-S0cp-202103020922.AVREGDUMP.tar wwpn B40_41-S0cp-202103020917.FABRIC.txt B40_41-S0cp-202103020920.SSHOW_SYS.txt B40_41-S0cp-202103020922.BCM_STATS.txt xxx B40_41-S0cp-202103020917.IF_TREE.txt B40_41-S0cp-202103020921.BLSREGDUMP.tar B40_41-S0cp-202103020922.C3REGDUMP.tar B40_41-S0cp-202103020917.ISCSID_DBG.txt B40_41-S0cp-202103020921.C1REGDUMP.tar B40_41-S0cp-202103020922.CRYP.txt B40_41-S0cp-202103020917.RTE.txt B40_41-S0cp-202103020921.C2REGDUMP.tar B40_41-S0cp-202103020922.ENC_LOGGER.tgz.txt
Find
out FRU P/N information
For FRU like power supplies, FAN, port blade, core blade or CP blade, check the chassisshow command output. It is included in the SSHOW_SYS.txt file. If it is a director class switch, check the SSHOW_SYS from the active CP.
A tip: To determine which CP is the active CP, I usually check the SSHOW_SYS output with larger size. Here is an example:
ls -l |grep SSHOW_SYS
-rwxr-xr-x 1 root root 839685 Aug 2 2022 X6-4-9.x.x.x-S1cp-202208021022.SSHOW_SYS.txt <==== S1cp should be the active CP.
-rwxr-xr-x 1 root root 532205 Aug 2 2022 X6-4-9.x.x.x-S2cp-202208021024.SSHOW_SYS.txt
If it is a pizza box class switch, simply check the SSHOW_SYS output. As you may notice the file is very large, over 800KB thus inconvenient for us as a support engineer to check the content in the file. So I wrote a script to split the large file to a number of small files. Each file contains a single command output.
switchdata/.lab1.x6_director_v9.tmp_zl.activecp/sshow_sys$ pwd switchdata/.lab1.x6_director_v9.tmp_zl.activecp/sshow_sys switchdata/.lab1.x6_director_v9.tmp_zl.activecp/sshow_sys$ ll total 921 ..... -rwxr-xr-x 1 root root 344424 May 11 2023 cat__var_log_configshowall* -rwxr-xr-x 1 root root 758 May 11 2023 cat__var_log_fabos.chassis.conf* -rwxr-xr-x 1 root root 5160 May 11 2023 chassisshow* <===== -rwxr-xr-x 1 root root 2161 May 11 2023 chkconfig* -rwxr-xr-x 1 root root 123881 May 11 2023 clihistory_--showall* -rwxr-xr-x 1 root root 460 May 11 2023 creditrecovmode_--show* -rwxr-xr-x 1 root root 10580 May 11 2023 dbgshow* -rwxr-xr-x 1 root root 941 May 11 2023 emhsmtraceshow* -rwxr-xr-x 1 root root 3950 May 11 2023 emtraceshow* -rwxr-xr-x 1 root root 8415 May 11 2023 emtraceshow2* -rwxr-xr-x 1 root root 267 May 11 2023 fanshow* ......*
So to check the PN, check the chassisshow output as follows:
- Power Supply
POWER SUPPLY Unit: 1 Power Source: AC PS Voltage input: 201.00 V Fan Direction: Non-portside Intake Header Version: 2 Power Consume Factor: 2870W Factory Part Num: 23-0000161-01 Factory Serial Num: DUC2M51XXXX Manufacture: Day: 21 Month: 12 Year: 2015 Update: Day: 2 Month: 8 Year: 2022 Time Alive: 2066 days Time Awake: 20 days
- Fan
FAN Unit: 1 Fan Direction: Non-portside Intake Header Version: 2 Power Consume Factor: -300W Factory Part Num: 60-1003203-04 Factory Serial Num: DYL3009XXXX Manufacture: Day: 4 Month: 5 Year: 16 Update: Day: 2 Month: 8 Year: 2022 Time Alive: 2065 days Time Awake: 111 days ID: BROCADE
- port blade:
SW BLADE Slot: 3 Header Version: 2 Power Consume Factor: -245W Power Usage: -159W Factory Part Num: 60-1003200-09 Factory Serial Num: DYJ3208XXXX Manufacture: Day: 27 Month: 2 Year: 2016 Update: Day: 2 Month: 8 Year: 2022 Time Alive: 2066 days Time Awake: 111 days

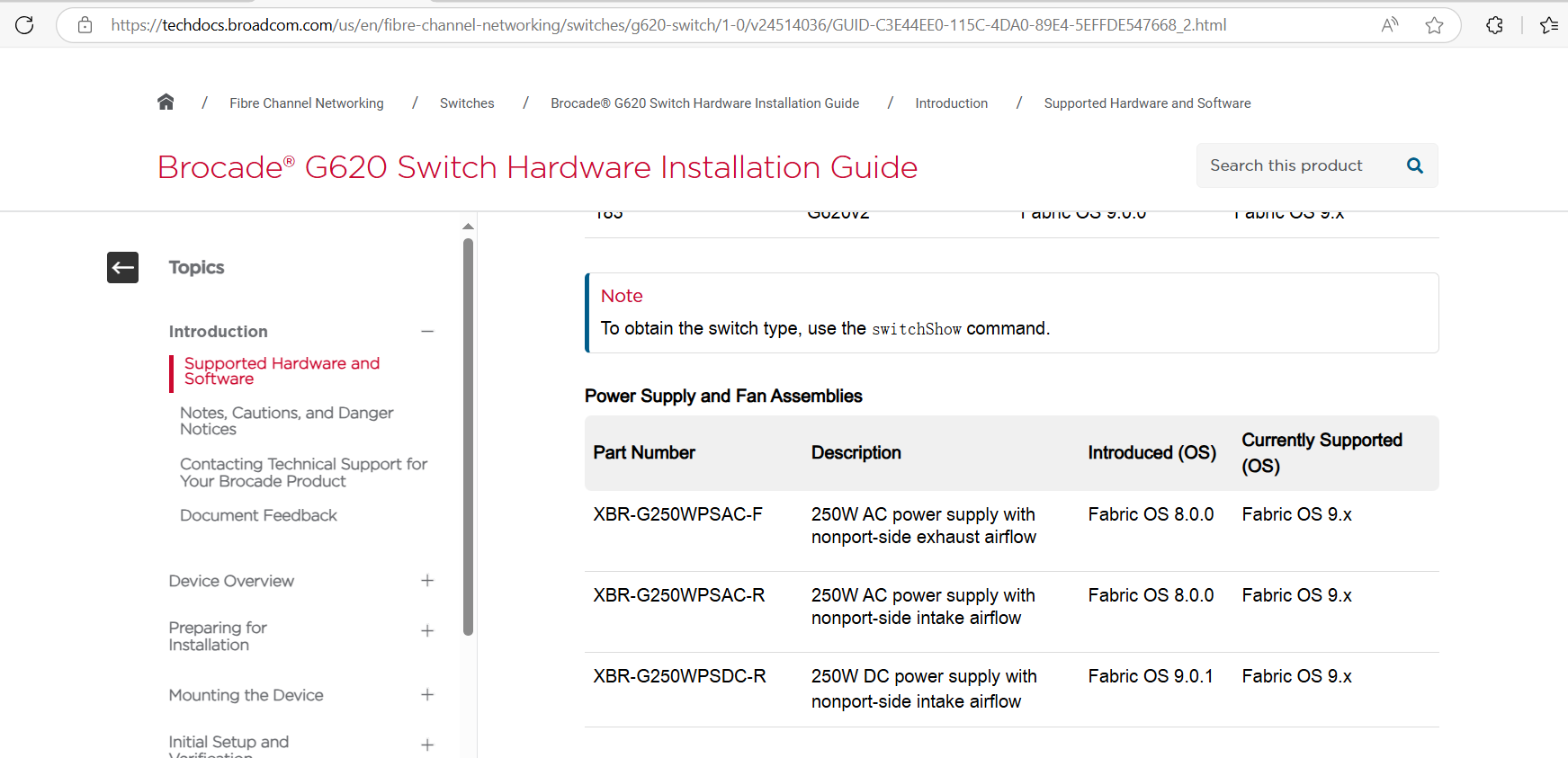

For standard switches, I realize that the chassisshow does not contains information about P/N for Power supplies.
we can check the installation guide for each product to find the relevant part number. Here is an example:
For SFP part information, check sfpshow output, vendor PN field. It is also in the SSHOW_SYS file
Slot 3/Port 0: ============= Identifier: 3 SFP Connector: 7 LC Transceiver: 6804404000000000 8,16,32_Gbps M5 sw Short_dist Encoding: 6 64B66B Baud Rate: 280 (units 100 megabaud) Length 9u: 0 (units km) Length 9u: 0 (units 100 meters) Length 50u (OM2): 3 (units 10 meters) Length 50u (OM3): 7 (units 10 meters) Length 62.5u:0 (units 10 meters) Length 50u (OM4): 10 (units 10 meters) Vendor Name: BROCADE Vendor OUI: 00:05:1e Vendor PN: 57-1000333-01 Vendor Rev: A Wavelength: 850 (units nm) Options: 083a Loss_of_Sig,Tx_Fault,Tx_Disable BR Max: 112 BR Min: 0 Serial No: JAA3154XXXXXXXX Date Code: 151203 DD Type: 0x68 Enh Options: 0xfa Status/Ctrl: 0x0 Pwr On Time: 5.27 years (46210 hours) E-Wrap Control: 0 O-Wrap Control: 0 Alarm flags[0,1] = 0x5, 0x0 Warn Flags[0,1] = 0x5, 0x0 Temperature: 39 Centigrade Current: 7.912 mAmps Voltage: 3305.6 mVolts RX Power: -2.4 dBm (580.2uW) TX Power: -1.1 dBm (772.1 uW)
part replacement procedure
part replacement procedure can be found in hardware installation guide in each switch product document. https://techdocs.broadcom.com/us/en/fibre-channel-networking.html
Usually the power supply and fan assembly units are hot-swappable if they are replaced one at a time. Other parts replacement procedure, like CP blade, core blade, port blade, can also be found in the hardware installation guide.
switch
type and serial number
What type of the switch it is when we have a switch supportsave and its serial number? For switch type, check switchshow output. Here is an exmaple:
./sshow_sys$ cat switchshow.128 CURRENT CONTEXT -- 0, 128 /fabos/bin/switchshow : switchName: X6-4 switchType: 165.0 <=== switchState: Online switchMode: Native switchRole: Principal switchDomain: 16 switchId: fffc10 switchWwn: 10:00:c4:f5:7c:XX:XX:XX zoning: ON (FabricVision2) switchBeacon: OFF FC Router: OFF Fabric Name: 32Gb SAN fabric HIF Mode: OFF Allow XISL Use: OFF LS Attributes: [FID: 128, Base Switch: No, Default Switch: Yes, Ficon Switch: No, Address Mode 1] Index Slot Port Address Media Speed State Proto ============================================================ 0 3 0 100000 id N32 Online FC E-Port segmented,10:00:88:94:71:XX:XX:XX (Long distance mode incompat) 1 3 1 100100 id N32 Online FC E-Port 10:00:c4:f5:7c:XX:XX:XX "sc8961a" (downstream)(Trunk master) 2 3 2 100800 id N8 Online FC F-Port 21:00:00:1b:32:XX:XX:XX 3 3 3 100900 id N8 Online FC F-Port 21:01:00:1b:32:XX:XX:XX ......
In this example, the switch type is 165.0. Each type of brocade switch has a unique number to identify its model and generation. Here is the document. Brocade switch type The following is a more complete list of information from the switchtype to brocade product name and IBM switch model, product name.
when (62) {$BROCADE_PRODUCT_NAME="Gen 4: Brocade DCX Backbone" ; &warningPrint ("EOS Hardware") ; &infoPrint ("switch product name is $BROCADE_PRODUCT_NAME") ;break;} when (64) {$BROCADE_PRODUCT_NAME="Gen 4: Brocade 5300, IBM 2498 Model B80" ; &warningPrint ("EOS Hardware") ; &infoPrint ("switch product name is $BROCADE_PRODUCT_NAME") ;break;} when (66) {$BROCADE_PRODUCT_NAME="Gen 4: Brocade 5100 IBM 2498-B40/40E" ; &warningPrint ("EOS Hardware") ; &infoPrint ("switch product name is $BROCADE_PRODUCT_NAME") ;break;} when (71) {$BROCADE_PRODUCT_NAME="Gen 4: Brocade 300, IBM 2498-B24 2498-24E" ; &infoPrint ("switch product name is $BROCADE_PRODUCT_NAME;End-of-Support: 04/16/2024; updated July 31, 2023https://www.ibm.com/docs/en/announcements/revised-eos-date-cisco-brocade-hardware?region=EMEA ") ;break;} when (77) {$BROCADE_PRODUCT_NAME="Gen 4: Brocade DCX-4S" ; &warningPrint ("EOS Hardware") ; &infoPrint ("switch product name is $BROCADE_PRODUCT_NAME; End-of-Support: October 31, 2024") ;break;} when (83) {$BROCADE_PRODUCT_NAME="Gen 4: Brocade 7800 Extension Switch, IBM 2498-R06" ; &infoPrint ("switch product name is $BROCADE_PRODUCT_NAME") ;break; } when (109) {$BROCADE_PRODUCT_NAME="Gen 5: Brocade 6510 Switch, IBM 2498-F48, 48-Port Switch" ; &infoPrint ("switch product name is $BROCADE_PRODUCT_NAME") ;break;} when (117) {$BROCADE_PRODUCT_NAME="Brocade 6547 Embedded Switch, 16 Gb 48-port Blade Server SAN I/O Module" ; &infoPrint ("switch product name is $BROCADE_PRODUCT_NAME") ;break; } when (118) {$BROCADE_PRODUCT_NAME="Gen 5: Brocade 6505 Switch 2498 Model F24 or X24, 249824G;IBM System Networking SAN24B-5" ; &infoPrint ("switch product name is $BROCADE_PRODUCT_NAME") ;break;} when (120) {$BROCADE_PRODUCT_NAME="Gen 5: Brocade DCX 8510-8 Backbone, IBM 2499-816" ; &infoPrint ("switch product name is $BROCADE_PRODUCT_NAME") ;break;} when (121) {$BROCADE_PRODUCT_NAME="Gen 5: Brocade DCX 8510-4 Backbone, IBM 2499-416" ; &infoPrint ("switch product name is $BROCADE_PRODUCT_NAME") ;break;} when (133) {$BROCADE_PRODUCT_NAME="Gen 5: Brocade 6520, IBM 2498 Models F96 and N96" ; &infoPrint ("switch product name is $BROCADE_PRODUCT_NAME") ;break;} when (148) {$BROCADE_PRODUCT_NAME="Gen 5: FCIP Brocade 7840 extension switch, IBM 2498-R42" ; &infoPrint ("switch product name is $BROCADE_PRODUCT_NAME") ;break;} when (162) {$BROCADE_PRODUCT_NAME="Gen 6: Brocade G620, IBM 8960-F64, 8960-N64" ; &infoPrint ("switch product name is $BROCADE_PRODUCT_NAME") ;break;} when (165) {$BROCADE_PRODUCT_NAME="Gen 6: Brocade X6-4 Director, IBM 8961-F04" ; &infoPrint ("switch product name is $BROCADE_PRODUCT_NAME") ;break;} when (166) {$BROCADE_PRODUCT_NAME="Gen 6: Brocade X6-8 Director, IBM 8961-F08" ; &infoPrint ("switch product name is $BROCADE_PRODUCT_NAME") ;break;} when (170) {$BROCADE_PRODUCT_NAME="Gen 6: Brocade G610 32 Gb 24-port switch, IBM 8960-F24; NOTE: 170.5 is 8969 F24" ; &infoPrint ("switch product name is $BROCADE_PRODUCT_NAME") ;break;} when (173) {$BROCADE_PRODUCT_NAME="Gen 6: Brocade G630, IBM 8960-F96 and 8960-N96" ; &infoPrint ("switch product name is $BROCADE_PRODUCT_NAME") ;break;} when (178) {$BROCADE_PRODUCT_NAME="Gen 6: Brocade 7810 Extension Switch, IBM 8960-R18" ; &infoPrint ("switch product name is $BROCADE_PRODUCT_NAME") ;break;} when (179) {$BROCADE_PRODUCT_NAME="Gen 7: Brocade X7-4 Director, IBM 8961-F74" ; &infoPrint ("switch product name is $BROCADE_PRODUCT_NAME") ;break;} when (180) {$BROCADE_PRODUCT_NAME="Gen 7: Brocade X7-8 Director, IBM 8961-F78" ; &infoPrint ("switch product name is $BROCADE_PRODUCT_NAME") ;break;} when (181) {$BROCADE_PRODUCT_NAME="Gen 7: Brocade G720 Switch, IBM 8960-P64 and 8960-R64" ; &infoPrint ("switch product name is $BROCADE_PRODUCT_NAME") ;break;} when (183) {$BROCADE_PRODUCT_NAME="Gen 6: Brocade G620 Fixed-port switch with configurable scaling from 24 to 64 ports. IBM 8960-N65" ; &infoPrint ("switch product name is $BROCADE_PRODUCT_NAME") ;break;} when (184) {$BROCADE_PRODUCT_NAME="Gen 6: Brocade G630 Switch, IBM 8960 F97 N97" ; &infoPrint ("switch product name is $BROCADE_PRODUCT_NAME") ;break;} when (189) {$BROCADE_PRODUCT_NAME="Gen 7: Brocade G730 Switch, Fixed-port switch with configurable scaling from 48 ports to 128 ports. It supports 64G, 32G, 16G, and 10G media types. IBM 8969 Models P96/R96" ; &infoPrint ("switch product name is $BROCADE_PRODUCT_NAME") ;break;} when (190) {$BROCADE_PRODUCT_NAME="Gen 7: Brocade 7850 Extension Switch, IBM 8969 R42" ; &infoPrint ("switch product name is $BROCADE_PRODUCT_NAME") ;break} The next important thing is to determine if the switch is the one the client use to open the ticket, ie. it is under a valid support contract.
WWN Unit: 1 System AirFlow: Non-portside Intake Header Version: 2 Power Consume Factor: -1W Factory Part Num: 60-1004116-02 Factory Serial Num: FNQ30XXXXXX Manufacture: Day: 8 Month: 6 Year: 21 Update: Day: 0 Month: 0 Year: 0 Time Alive: 696 days Time Awake: 669 days ID: ABC0000CA Part Num: 0089610000F78 Serial Num: 75XXXXX Generation Num: 7
Factory Serial Num is the brocade switch SN and Serial Num is IBM switch S/N. So if we are dealing with switches not from IBM OEM, we may not be able to find the Serial Num in this section
switchshow and porterrshow interpret
The switcshow output contains brief information about switch domain ID, port addresses and whether or not NPIV is used in some ports. The following example shows the switch domain ID is 122 (in decimal). Note that each port address starts with 7a (in hex), which is 122 in decimal. Let's take a close look at one particular port address 7a0400. It can be interpreted as
- domain ID is 0x7a
- probably the port is in slot 4 (not always true).
- it is not a NPIV address.
switchName: LSAT_D2_F4_PUBLIC_IT switchType: 180.0 switchState: Online switchMode: Native switchRole: Subordinate switchDomain: 122 switchId: fffc7a switchWwn: 10:00:d8:1f:cc:XX:XX:XX zoning: ON (ZS_F4_41_ACTIVE) switchBeacon: OFF FC Router: OFF Fabric Name: IT-F4-PUBLIC-IT HIF Mode: OFF Allow XISL Use: ON LS Attributes: [FID: 41, Base Switch: No, Default Switch: No, Ficon Switch: No, Address Mode 0] Index Slot Port Address Media Speed State Proto ============================================================ 4 3 4 7a0400 id N16 Online FC F-Port 50:05:07:68:0c:52:bb:XX 5 3 5 7a0500 id N16 Online FC F-Port 50:05:07:68:0b:32:cd:XX 6 3 6 7a0600 id N16 Online FC F-Port 1 N Port + 2 NPIV public <===== 7 3 7 7a0700 id N16 Online FC F-Port 1 N Port + 2 NPIV public 8 3 8 7a0800 id N32 Online FC F-Port 50:00:09:74:10:10:38:XX
Then we check portloginshow output and we know the NPIV in details as follows. 7a0600, 7a0601 and 7a0602 share the same physical port.
portloginshow 6 Type PID World Wide Name credit df_sz cos ===================================================== fd 7a0602 50:05:07:68:0c:5a:ce:XX 40 2048 8 scr=0x3 fd 7a0601 50:05:07:68:0c:56:ce:XX 40 2048 8 scr=0x3 fe 7a0600 50:05:07:68:0c:52:ce:XX 40 2048 8 scr=0x3 ff 7a0600 50:05:07:68:0c:52:ce:XX 0 0 8 d_id=FFFC7A
By the way, WWPN starts with
- 50:05:07:68 is spec-v family storage, like SVC, V7000, FS9100 etc
- 50:05:07:63:0 is more likely DS8000 family
- 50:01:73:80 is XIV storage
- 50:05:07:60 is FS900 storage
Let's consider this scenario. A client raised an issue regarding a WWPN like 50:05:07:68:0c:56:ce:bc. He want SAN switch support to check this port to see if there is any issues regarding this port. This is a very common request and we need to have a quick solution in response to this request.
- if the WWPN is indeed login to this switch.
- what is the alias, the zone information
- the port statistics
- SFP information.
========= WWPN check=========
50:05:07:68:0c:5a:ce:XX
fcAddress is 7a0602
Port Index is 6
portloginshow 6
Type PID World Wide Name credit df_sz cos
=====================================================
fd 7a0602 50:05:07:68:0c:5a:ce:XX 40 2048 8 scr=0x3
fd 7a0601 50:05:07:68:0c:56:ce:XX 40 2048 8 scr=0x3
fe 7a0600 50:05:07:68:0c:52:ce:XX 40 2048 8 scr=0x3
ff 7a0600 50:05:07:68:0c:52:ce:XX 0 0 8 d_id=FFFC7A
50:05:07:68:0b:32:cd:XX
fcAddress is 7a0500
Port Index is 5
portloginshow 5
Type PID World Wide Name credit df_sz cos
=====================================================
fe 7a0500 50:05:07:68:0b:32:cd:XX 40 2048 8 scr=0x3
ff 7a0500 50:05:07:68:0b:32:cd:XX 0 0 8 d_id=FFFC7A
50:05:07:68:0c:52:bb:XX
fcAddress is 7a0400
Port Index is 4
portloginshow 4
Type PID World Wide Name credit df_sz cos
=====================================================
fe 7a0400 50:05:07:68:0c:52:bb:XX 40 2048 8 scr=0x3
ff 7a0400 50:05:07:68:0c:52:bb:XX 0 0 8 d_id=FFFC7A
Index Slot Port Address Media Speed State Proto
============================================================
6 3 6 7a0600 id N16 Online FC F-Port 1 N Port + 2 NPIV public
5 3 5 7a0500 id N16 Online FC F-Port 50:05:07:68:0b:32:cd:XX
4 3 4 7a0400 id N16 Online FC F-Port 50:05:07:68:0c:52:bb:XX
frames enc crc crc too too bad enc disc link loss loss frjt fbsy c3timeout pcs uncor
tx rx in err g_eof shrt long eof out c3 fail sync sig tx rx err err
6: 420.7g 1.7t 0 0 0 0 0 0 0 235 0 0 2 0 0 0 95 0 0
5: 20.8g 27.1g 0 0 0 0 0 0 0 1.4k 0 0 3 0 0 0 0 0 0
4: 668.2g 137.8g 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Slot 3, Port 6 RX Power: -3.1 dBm (493.5uW) TX Power: -2.3 dBm (585.9 uW) Slot 3, Port 5 RX Power: -3.1 dBm (490.0uW) TX Power: -2.1 dBm (620.7 uW) Slot 3, Port 4 RX Power: -2.1 dBm (615.5uW) TX Power: -1.2 dBm (752.0 uW) 50:05:07:68:0c:5a:ce:XX has the alias of SVCNAT-ZTV0_N14 50:05:07:68:0b:32:cd:XX has the alias of V70KAT-51NR_IO0-C1-P6 50:05:07:68:0c:52:bb:XX has the alias of SVCNAT-FVG0_P14 50:05:07:68:0b:32:cd:XX is in the zone: ZBE_SVCCMV-0034_V70KAT-51NR 50:05:07:68:0b:32:cd:XX is in the zone: ZBE_SVCCMV-0036_V70KAT-51NR 50:05:07:68:0b:32:cd:XX is in the zone: ZBE_SVCCMV-0035_V70KAT-51NR 50:05:07:68:0b:32:cd:XX is in the zone: ZBE_SVCCMV-0037_V70KAT-51NR 50:05:07:68:0b:32:cd:XX is in the zone: ZCL_V70KAT-51NR 50:05:07:68:0c:52:bb:XX is in the zone: ZBE_SVCCMV05_FS90AT-130Y
Based on the above output, we can have some conclusion:
- they are likely SVC, V7000 storage ports
- SFP looks good for all 3 ports
- port 6 has a few c3timeout on rx and may need to pay more attention on this
Next I will talk more about the c3timeout on tx and rx, ie: slow drain 101. First remember the flow control is based on buffer-to-buffer(BB) credit. in short, a port need to have BB credit before it can send frame. when a port receives a R_RDY frame, it means it get a BB credit. A R_RDY frame can lost during trasmit or for unkown reason, a misbehavior port does not send R_RDY in time.
Note: ASIC hold time(TOV): 500 ms, from performance troubleshooting guide

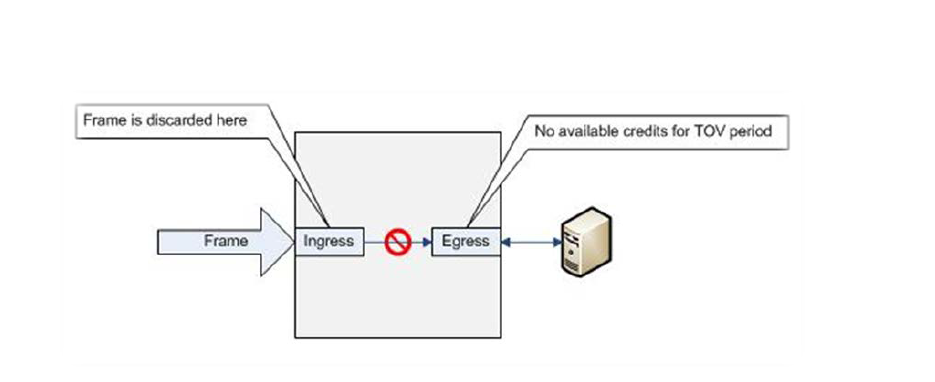

The above picture is c3timeout on rx

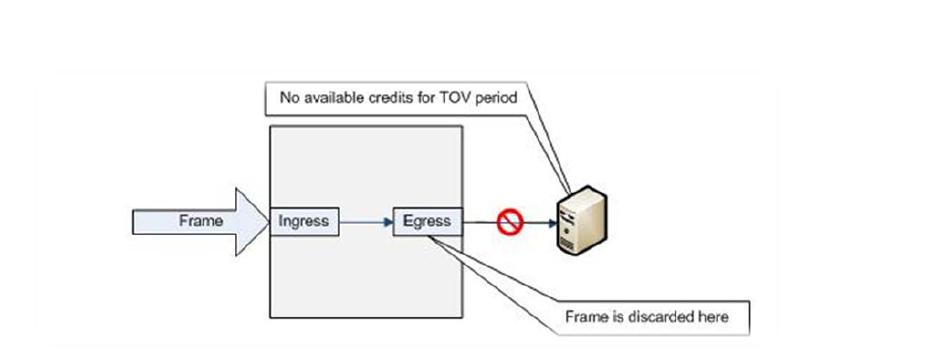

The above picture is c3timeout on tx. Our job is to find the port with tx timeout.
- Example 1, it is a perfect example to show c3timeout on tx and rx. So the device attached to port 5
has some problem and should be investigated.
CURRENT CONTEXT -- 0 , 128 frames enc crc crc too too bad enc disc link loss loss frjt fbsy c3timeout pcs tx rx in err g_eof shrt long eof out c3 fail sync sig tx rx err 0: 2.3g 658.8m 0 0 0 0 0 0 0 2 0 0 0 0 0 0 0 0 1: 73.9m 226.4m 0 0 0 0 0 0 513 36 1 1 1 0 0 0 36 0 2: 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 3: 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 4: 658.8m 2.3g 0 0 0 0 0 0 0 0 1 0 1 0 0 0 0 0 5: 226.4m 73.8m 0 0 0 0 0 0 0 36 4 0 3 0 0 36 0 0 - Example 2, there is only rx timeout. If there is no tx timeout on F-ports, we need to check if there
is ISL link with this switch and check if there is any congestion on the ISL link.
CURRENT CONTEXT -- 2, 41 /fabos/cliexec/porterrshow : frames enc crc crc too too bad enc disc link loss loss frjt fbsy c3timeout pcs uncor tx rx in err g_eof shrt long eof out c3 fail sync sig tx rx err err 4: 668.2g 137.8g 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 5: 20.8g 27.1g 0 0 0 0 0 0 0 1.4k 0 0 3 0 0 0 0 0 0 6: 420.7g 1.7t 0 0 0 0 0 0 0 235 0 0 2 0 0 0 95 0 0 ......
For other counter meanings, please search the Internet. Here are some reference
What_is_the_information_given_from_a_portErrShow_output_on_a_Brocade_switch
how to interpret the porterrshow from dell
What_is_the_information_given_from_a_portErrShow_output_on_a_Brocade_switch
how to interpret the porterrshow from dell
简单点
- pcs error 通常是怀疑线缆有问题。
- enc_in enc_out 通常不会单独出现，如果单独出现参考上面的链接
- crc相关的报错，需要看crc g_eof.
- c3timeout tx and rx is 和慢速设备有关. 需要找到c3timeout tx对应的端口，此设备为慢速设备。
IMPORTANT NOTE: remember the error counter is increamented over time so such
information may not reflect the current issue or the current situation.
that is why usually you are asked by SAN support engineer to clear counter, monitor for another 2 hours
and collect another data for verification.
any solutions to this frustration? YES, use MAPS.
MAPS
So what is MAPS: MAPS stands for monitoring Alerting polilcy suite. Whatever name it is , it is a monitoring utility based on policies. MAPS is a SAN health monitor supported on all switches running FOS 7.2.0 or later. MAPS is implicitly activated on FOS 7.4.0 or later. However doing so without a license provides reduced functionality. When you upgrade FOS to 7.4.0 or later, MAPS start monitor as soon as the switch is active. MAPS replaces the functionality of an earlier FOS feature called Fabric watch. the good part is MAPS information has timestamp so we know what happened on the switch and when! Here is an exmaple:
1 Dashboard Information:
=======================
DB start time: Mon Mar 28 17:51:00 2022
Active policy: IBM_SO_Standard_fos821_v15
Configured Notifications: RASLOG,SNMP,EMAIL,SW_CRITICAL,SW_MARGINAL,SFP_MARGINAL
Fenced Ports : None
Decommissioned Ports : None
Fenced circuits : N/A
Quarantined Ports : None
Top Zoned PIDs : 0x080200(48) 0x084200(48) 0x08b840(24) 0x08e040(24) 0x089840(24)
2 Switch Health Report:
=======================
Current Switch Policy Status: CRITICAL
Contributing Factors:
---------------------
*FAULTY_BLADE (MARGINAL).
*DOWN_CORE (CRITICAL).
3.1 Summary Report:
===================
Category |Today |Last 7 days |
--------------------------------------------------------------------------------
Port Health |No Errors |No Errors |
BE Port Health |Out of operating range |No Errors |
Extension GE Port Health |No Errors |No Errors |
Fru Health |Out of operating range |Out of operating range |
Security Violations |Out of operating range |Out of operating range |
Fabric State Changes |Out of operating range |No Errors |
Switch Resource |In operating range |In operating range |
Traffic Performance |In operating range |In operating range |
Extension Health |Not applicable |Not applicable |
Fabric Performance Impact|Out of operating range |Out of operating range |
3.2 Rules Affecting Health:
===========================
Category(Violation Count)|RepeatCount|Rule Name |Execution Time |Object |Triggered Value(Units)|
-----------------------------------------------------------------------------------------------------------------------------
BE Port Health(1) |1 |defALL_BE_PORTSLR_5M_10 |11/21/22 15:27:01|BE Port 10/69 |4.2G |
| | | |BE Port 10/68 |4.2G |
| | | |BE Port 10/66 |4.2G |
| | | |BE Port 10/65 |4.2G |
| | | |BE Port 10/63 |4.2G |
Fru Health(12) |10 |defALL_SLOTSBLADE_STATE_FAU|11/21/22 15:28:32|Blade 8 |FAULTY |
| |LTY | | | |
| | | |Blade 5 |FAULTY |
| | | |Blade 12 |FAULTY |
| | | |Blade 11 |FAULTY |
| | | |Blade 10 |FAULTY |
|1 |defALL_PORTSSFP_STATE_IN |11/16/22 15:18:39|U-Port 9/47 |IN |
|1 |defALL_PORTSSFP_STATE_OUT |11/16/22 15:18:32|U-Port 9/47 |OUT |
Security Violations(22) |1 |SWITCH_SEC_TELNET_log |11/21/22 16:10:45|Switch |6 Violations |
|1 |SWITCH_SEC_LV_log |11/21/22 16:10:45|Switch |6 Violations |
|2 |SWITCH_SEC_LV_log |11/18/22 22:09:03|Switch |17 Violations |
| | | |Switch |6 Violations |
|5 |SWITCH_SEC_TELNET_log |11/18/22 22:09:03|Switch |17 Violations |
| | | |Switch |6 Violations |
| | | |Switch |5 Violations |
| | | |Switch |33 Violations |
| | | |Switch |8 Violations |
|5 |SWITCH_SEC_LV_log |11/14/22 01:10:20|Switch |6 Violations |
| | | |Switch |14 Violations |
| | | |Switch |8 Violations |
| | | |Switch |6 Violations |
| | | |Switch |6 Violations |
|8 |SWITCH_SEC_TELNET_log |11/14/22 01:10:20|Switch |6 Violations |
| | | |Switch |14 Violations |
| | | |Switch |8 Violations |
| | | |Switch |6 Violations |
| | | |Switch |6 Violations |
Fabric State Changes(4) |2 |SWICTH_EportDown_Alert |11/21/22 15:28:34|Switch |16 Ports |
| | | |Switch |16 Ports |
|2 |SWITCH_EPORT_DOWN_alert |11/21/22 15:28:34|Switch |16 Ports |
| | | |Switch |16 Ports |
Fabric Performance Impact|2 |ALL_HOST_TX_log |11/21/22 12:15:15|F-Port 11/24 |75.45 % |
(347) | | | | | |
| | | |F-Port 11/24 |76.22 % |
|1 |ALL_OTHER_F_TX_alert |11/21/22 09:06:39|F-Port 4/18 |90.06 % |
|5 |ALL_OTHER_F_TX_log |11/21/22 09:14:21|F-Port 10/20 |75.21 % |
| | | |F-Port 4/18 |75.42 % |
| | | |F-Port 10/20 |75.32 % |
| | | |F-Port 4/18 |75.37 % |
| | | |F-Port 10/20 |89.64 % |
|1 |ALL_HOST_TX_log |11/21/22 00:47:21|F-Port 2/24 |75.26 % |
|7 |ALL_HOST_TX_log |11/21/22 00:38:09|F-Port 2/24 |76.09 % |
| | | |F-Port 2/24 |77.57 % |
| | | |F-Port 2/24 |75.53 % |
| | | |F-Port 2/24 |75.30 % |
| | | |F-Port 2/24 |75.55 % |
|1 |defALL_LOCAL_PIDSIT_FLOW_16|11/20/22 22:39:58|Pid 0x08e840 |24 IT-Flow(s) |
| | | |Pid 0x08a840 |24 IT-Flow(s) |
| | | |Pid 0x084300 |24 IT-Flow(s) |
| | | |Pid 0x085300 |24 IT-Flow(s) |
| | | |Pid 0x084200 |48 IT-Flow(s) |
|55 |ALL_HOST_TX_log |11/20/22 18:03:51|F-Port 10/24 |75.72 % |

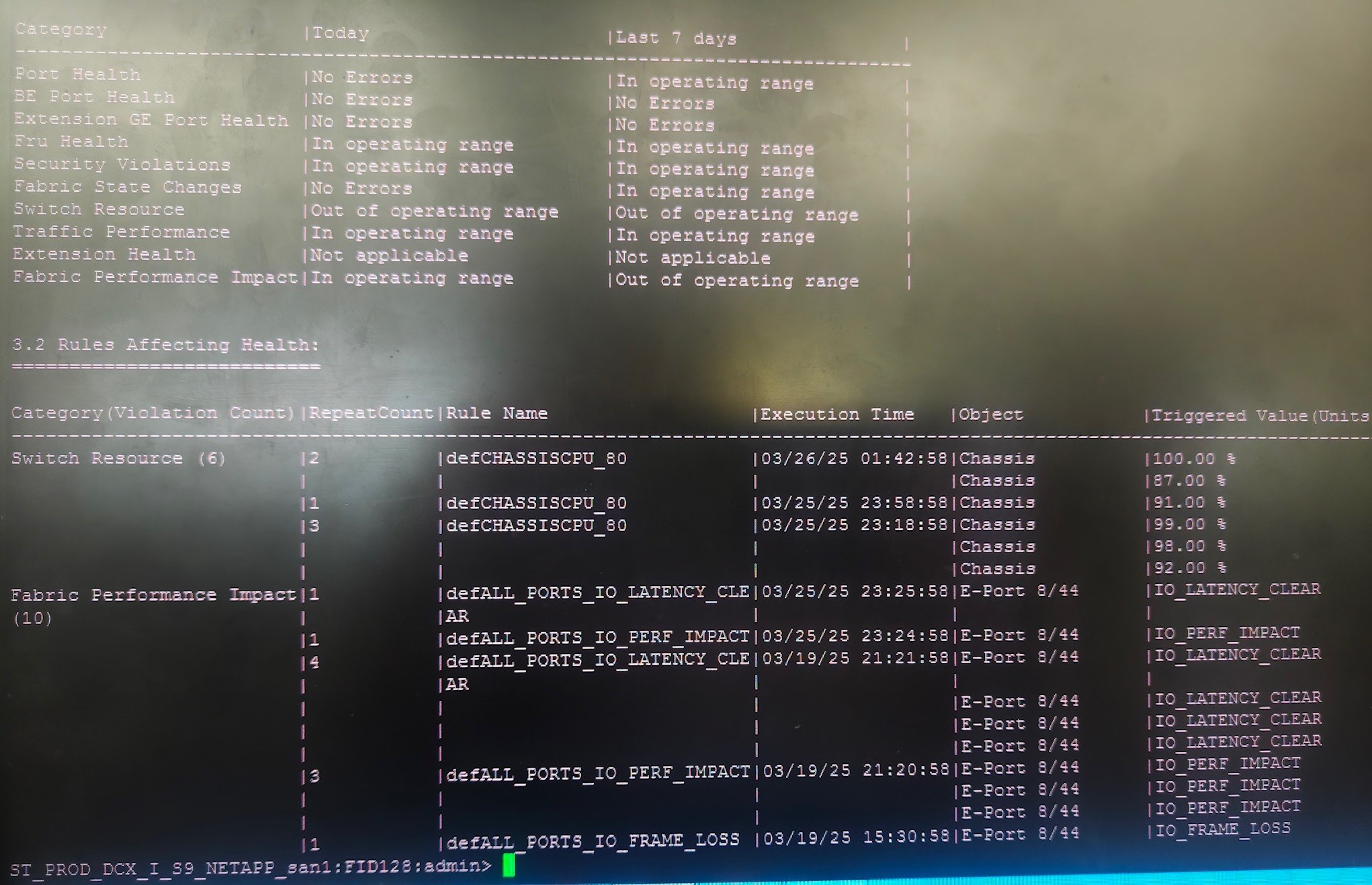

another example of MAPS
SFP
SFP showoutput，we check the TX and RX.
RX: light signal recevied by the switch port. if the value is low, the cable and the attached device SFP
should be checked.
TX: light signal sent from the switch port. if the value is low, the switch SFP might need to be replaced.
Port 1:
=============
Identifier: 3 SFP
Connector: 7 LC
Transceiver: 700c406000000000 4,8,16_Gbps M5,M6 sw Inter,Short_dist
Encoding: 6 64B66B
Baud Rate: 140 (units 100 megabaud)
Length 9u: 0 (units km)
Length 9u: 0 (units 100 meters)
Length 50u (OM2): 4 (units 10 meters)
Length 50u (OM3): 10 (units 10 meters)
Length 62.5u:2 (units 10 meters)
Length Cu: 0 (units 1 meter)
Vendor Name: BROCADE
Vendor OUI: 00:05:1e
Vendor PN: 57-0000088-01
Vendor Rev: A
Wavelength: 850 (units nm)
Options: 003a Loss_of_Sig,Tx_Fault,Tx_Disable
BR Max: 0
BR Min: 0
Serial No: JAA111291XXXXXX
Date Code: 110724
DD Type: 0x68
Enh Options: 0xfa
Status/Ctrl: 0x0
Pwr On Time: 7.45 years (65339 hours)
E-Wrap Control: 0
O-Wrap Control: 0
Alarm flags[0,1] = 0x0, 0x0
Warn Flags[0,1] = 0x0, 0x0
Temperature: 42 Centigrade
Current: 7.108 mAmps
Voltage: 3313.9 mVolts
RX Power: -2.5 dBm (568.3uW)
TX Power: -2.3 dBm (594.6 uW)
Dec 4 22:35:47 fscsi4 T FCP_ERR4 Adapter driver's cmd entry point rejected an ELS due to ENETDOWN
Dec 4 22:35:27 fscsi4 T FCP_ERR4 Adapter driver's cmd entry point rejected an ELS due to ENETDOWN
Dec 4 22:35:13 fscsi4 T FCP_ERR4 Adapter driver's cmd entry point rejected an ELS due to ENETDOWN
Dec 4 02:08:28 fcs4 T FCA_ERR4 Too many FABRIC_OPS failures (FLOGI fail)
Dec 4 02:08:10 fcs4 T FCA_ERR4 Too many FABRIC_OPS failures (FLOGI fail)
Dec 4 02:07:47 fcs4 T FCA_ERR4 Too many FABRIC_OPS failures (FLOGI fail)
Dec 4 02:07:32 fcs4 T FCA_ERR4 Too many FABRIC_OPS failures (FLOGI fail)
Dec 4 02:06:39 fcs4 T FCA_ERR4 Too many FABRIC_OPS failures (FLOGI fail)
Dec 4 02:06:14 fcs4 T FCA_ERR4 Too many FABRIC_OPS failures (FLOGI fail)
FIBRE CHANNEL STATISTICS REPORT: fcs4
Device Type: FC Adapter (adapter/pciex/df1000e31410140)
Serial Number: Y050HY132011
ZA: 11.2.211.9
World Wide Node Name: 0x200000109BC72D96
World Wide Port Name: 0x100000109BC72D96
FC-4 TYPES:
Supported: 0x0000010000000000000000000000000000000000000000000000000000000000
Active: 0x0000010000000000000000000000000000000000000000000000000000000000
FC-4 TYPES (ULP mappings):
Supported ULPs:
Small Computer System Interface (SCSI) Fibre Channel Protocol (FCP)
Active ULPs:
Small Computer System Interface (SCSI) Fibre Channel Protocol (FCP)
Class of Service: 3
Port Speed (supported): 16 GBIT
Port Speed (running): 8 GBIT
Port FC ID: 0xCD2B00
Port Type: Fabric
Attention Type: Link Down
Topology: Point to Point or Fabric
Seconds Since Last Reset: 21046778
Transmit Statistics Receive Statistics
------------------- ------------------
Frames: 982703109 1203143688
Words: 265014135808 346205522176
LIP Count: 0
NOS Count: 0
Error Frames: 99
Dumped Frames: 0
Link Failure Count: 6408
Loss of Sync Count: 600943871
Loss of Signal: 0
Primitive Seq Protocol Error Count: 0
Invalid Tx Word Count: 1279236056
Invalid CRC Count: 99
FC SCSI Adapter Driver Information
No DMA Resource Count: 0
No Adapter Elements Count: 0
No Command Resource Count: 0
FC SCSI Traffic Statistics
Input Requests: 92741830
Output Requests: 189647540
Control Requests: 179995
Input Bytes: 1376015491235
Output Bytes: 1051010081792
Adapter Effective max transfer value: 0x200000
FC SFP Information
Vendor Name: FINISAR CORP.
Vendor OUI: 00009065
Vendor PN: FTE8516N1LCN-EM
Temperature: 44.852 C [Range -128 C - +128 C]
Voltage : 3.465 V [Range 0 V - +6.55 V]
TX Bias: 8.026 mA [Range 0 mA - 131 mA]
TX Power: -3.9147 dBm [Range -40 dBm - +8.2 dBm]
0.4060 mW [Range 0 mW - 6.5535 mW]
RX Power: -25.3760 dBm [Range -40 dBm - +8.2 dBm]
0.0029 mW [Range 0 mW - 6.5535 mW ] 没有光, 可能是对端设备有问题，或者光纤链路有问题，也可能是对端设备把这个口给禁掉
useful links
